MicroScribe M Series

Portable CMMs

The precision you need.

The MicroScribe® M portable articulated arm CMM is a professional, affordable alternative for your inspection, design, engineering and other precision metrology applications.

With accuracies of  +/- 0.0020” (50" volume) and +/- 0.0025″ (66" volume) and available with 5 or 6 axes, the MicroScribe M system is the right tool for manufactured parts inspection, high-fidelity 3D digitizing, concept-to-product design, and more.

portable CMM machine

Professionally Calibrated and Certified

MicroScribe M portable CMM machine systems are calibrated and rigorously quality tested according to Revware’s Tri-Test Calibration method based on the American Society of Mechanical Engineers’ B89.4.22 specifications for the performance evaluation of articulated-arm CMMs. Our systems are CE and FCC certified, RoHS compliant, and come with a standard one-year manufacturer’s limited warranty.

MicroScribe M Features

High Performance, High Accuracy

icon-black-check

Smooth, one-hand operation for better data collection

icon-black-check

Seamless integration with premier reverse engineering and metrology software

icon-black-check

Portable – weighs as little as 12.0 lb/5.4 kg (50” version)

icon-black-check

Ideal for custom laser, transducer, or other attachments (6-axis version)

icon-black-check

M4 threaded stylus for use with a wide variety of commercial probes

icon-black-check

Custom reference frame for defining your physical workspace

icon-black-check

Magnetic base stop for precision homing

icon-black-check

MicroScribe Utility Software (MUS) 7.0 with CADpad included

precision-machining-revware

Precision-made aircraft aluminum and carbon fiber

calipers-revware

Accuracies up to +/- 0.002″ (25-inch MX) or +/- 0.003″ (33-inch MLX)

software-revware

Seamlessly integrates with leading CAD/CAM, reverse engineering, and metrology software

axis-revware

5 or 6 degrees of freedom

hand-stylus-revware-green

Stylus designed for smooth, one-handed use

revware-ruler

Two arm lengths: 25" or 33"

Quick and Versatile

MicroScribe M portable CMM machine systems work with physical objects of any shape, size, and material

Trace over the contours of an object once or at intervals to efficiently build complex 3D and 4D datasets

Setting up the MicroScribe® M portable CMM machine system is simple, taking as little as ten minutes

Mount the base to a work surface or set the clamp system wherever you need it

Software Integration

The MicroScribe M portable CMM machine system seamlessly integrates with many measurement and inspection software packages, freeing you to choose the software just right for your business

The included MicroScribe Utility Software® (MUS) allows data acquisition for many applications that do not provide native support

With the fast operation and ease of use provided by the MicroScribe M system, do more projects in-house to avoid increased cost and protracted turnaround associated with outsourcing

portable CMM machine

Compare the MicroScribe® M Digitizer Series

The Right Model for Your Needs

MicroScribe SystemMXMLX
Reach25" (.63m)33" (.84m)
Degrees of Freedom:5, 65, 6
Accurate to+/- 0.002″ (0.0508mm)+/-0.003 in (0.0762 mm)
Weight12.0 lb (5.4 kg)13.3 lb (6.0 kg)
Workspace Diameter50″ (1.27m)66" (1.67m)
Universal Power Supply(100V – 240V)
InterfaceUSB 2.0
OS compatibilityWindows XP, 7, 8, 10
Operating Temp59 to 95°F ( 15°C to 35°C)
Storage Temp-4 to 158°F (-20°C to 70°C)
Operating Humidity10-90% non-condensing
Download Product Brochure

Included Accessories

MicroScribe Utility Software (MUS)

Limited manufacturer warranty

Certificate of Calibration

Universal Power Supply (with country-specific IEC cable)

Two 3 mm ruby ball probe tips, M4 threaded

Tip tool

Tip calibration fixture

USB cable

Hand switch

User’s guide

Storage strap

Optional Accessories

Additional probe tips

Rugged carry case for easy travel

Dual foot pedal for hands-free use

Mounting plate

Magnetic mounts

Tripod

Serial cable

Annual recertification

MicroScribe Accessories

Enhance Your Workflow

Laboratory Specimen Stand

View
Articulating arm laboratory specimen stand for holding bones, crania, and fragile artifacts while you collect data and perform analyses.
Three delrin probes in a small box with black foam

Disposable Non-Marring Probe Set (3)

View
Disposable M4 non-marring point probes, set of three (3) for forensics and anthropology.

MicroScribe Carry-on Travel Case

View
Rugged carry-on travel case for MicroScribe 25" arms (3D, G2X, i+). Includes custom foam inserts and accessory box.

MicroScribe Landmark Probe Tip Workpak

View
M4 Probe tip workpak for M, i, and i+ series MicroScribe arms (mixed styli and extension). For custom or other tips not listed, Contact us.

MicroScribe Magnetic Mounting Plate

View
Aluminum mounting platform for i+ Series MicroScribe arms with magnetic lock switch system.
Aligment Divots set of 18

Alignment Divots Set of 18

View
Precision alignment divots, aluminum, set of 18 (adhesive not included).

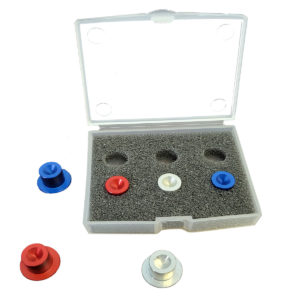

Alignment Divots Set of 6

View
Precision alignment divots, aluminum, set of six (adhesive not included).

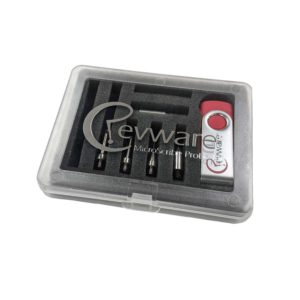

MicroScribe 4-48 Probe Tip Workpak

View
4-48 Probe tip workpak for G and 3D series MicroScribe arms (mixed styli and extension). For custom or other tips not listed, Contact us.

Probe Tip Adaptors for MicroScribe

View
Steel adaptors for MicroScribe probe tips.

Store-and-Ship Box Set for MicroScribe

View
Replacement container for safe storage and shipping of MicroScribe systems.

MicroScribe Probe Tip Extension

View
MicroScribe probe tip extension accessory, carbide steel, M4 X 15mm.

MicroScribe Probe Tip Tool

View
Probe Tip Tool for MicroScribe

MicroScribe Replacement Tips

View
MicroScribe replacement probe tips. For custom or other tips not listed, Contact us.

USB Cable for MicroScribe Arm

View
USB Cable for MicroScribe arm connection (all models).

Serial Cable for MicroScribe Arm

View
Serial Cable for MicroScribe arm connection (3D, G and i series)

MicroScribe Mounting Plate

View
Aluminum mounting platform for M and i Series MicroScribe arms

MicroScribe Tripod Mounting Plate

View
Aluminum mounting platform for tripod, M and i Series MicroScribe arms.

Tripod for MicroScribe Arm

View
Heavy duty tripod for mounting MicroScribe arm (All models). Center 3/8-16 standard video mount. Mounting platform sold separately.

MicroScribe Dual Foot Pedal

View
Twin Standard Digitial Foot Pedal Accessory for MicroScribe arms (All Models). Comes with 90-day limited manufacturer's warranty.

Power Supply for MicroScribe M Series

View
Power Supply for MicroScribe M series arms (All Models), 9V 2.5A output with IEC cable (please specify US, EU, UK, or AU).
