MicroScribe i+ Series

Portable CMMs

Microscribe Digitizer

Accurate. Affordable. Portable.

Revware’s MicroScribe+ is the MicroScribe® i, PLUS higher accuracy and improved internal architecture.



Now with accuracies of +/- 0.0020″ (0.0508 mm) for the 25-inch i+ or +/- 0.0025″ (0.0635 mm) for the 33-inch iL+, the MicroScribe i+ portable articulated arm CMM is a cost-effective alternative to traditional CMMs for industrial modeling, reverse engineering, spatial alignment, and position tracking.



Our three-dimensional digitizers offer a fast, flexible, truly portable solution for research, engineering, graphic arts, animation, healthcare, and many other industry applications.

Configure and Purchase

Professionally Calibrated and Certified

MicroScribe portable articulated arm CMMs are calibrated according to Revware’s Tri-Test Calibration method based on the American Society of Mechanical Engineers’ B89.4.22 specifications for the performance evaluation of articulated-arm CMMs, are CE and FCC certified, RoHS compliant, and come with a standard one-year manufacturer’s limited warranty.

MicroScribe i+ Portable CMM Features

Smooth Motion for Fast Data Collection

icon-black-check

Easy one-hand operation with infinite rotation in wrist joint

icon-black-check

5- or 6-degree of freedom options give maximum versatility in data collection

icon-black-check

Fast click-and-go operation – minimal training needed

icon-black-check

Portable – weighs as little as 8.3 pounds (3.8 kg) (50” version)

icon-black-check

M4 threaded stylus for use with a wide variety of commercial probes

icon-black-check

Magnetic base stop for precision homing

icon-black-check

Custom reference frame for defining your physical workspace

icon-black-check

MicroScribe Utility Software (MUS) 7.0 with CADpad included

icon-black-check

USB connection provides both high-speed data and system power

Download product brochure
precision-machining-revware

Precision-made aircraft aluminum and carbon fiber

calipers-revware

Accurate to better than +/- 0.0020″ (25-inch i+) and +/- 0.0025″ (33-inch iL+)

hand-stylus-revware-green

Stylus designed for smooth one-handed use

axis-revware

5 or 6 degrees of freedom

software-revware

Seamlessly integrates with leading CAD and design software

revware-ruler

Two arm lengths: 25" or 33"

Quick and Versatile

MicroScribe i+ systems work with physical objects of any shape, size, and material

Setting up the MicroScribe i+ arm is simple, taking as little as five minutes

Optional M4-threaded probe tips for fast and accurate measurement

Mount the base to a work surface or set the clamp system wherever you need it

Software Integration

The MicroScribe i+ Portable CMM system seamlessly integrates with many measurement and inspection software packages, freeing you to choose the software just right for your business

The included MicroScribe Utility Software® (MUS) allows data acquisition for many applications that do not provide native support

With the fast operation and ease of use provided by the MicroScribe i+ Digitizer system, do more projects in-house to avoid increased cost and protracted turnaround associated with outsourcing

Microscribe Digitizer

Compare the MicroScribe® i+ PCMM Series

The Right Model for Your Needs

MicroScribe® Systemi+iL+
Reach25″ (.63m)33 in (.84m)
Workspace Diameter50″ (1.27m)66 in (1.67m)
Degrees of Freedom:5, 65, 6
Position Accuracy+/-0.0020 in (0.0508 mm)*+/-0.0025 in (0.0635 mm)*
Weight8.3 lb (3.8 kg)9.1 lb (4.1 kg)
Connectivity and PowerUSB 1.1 w/5V DC
OS compatibilityWindows XP, 7, 8, 10, 11
Operating Temp59 to 95°F (15°C to 35°C)
Storage Temp-4 to 158°F (-20°C to 70°C)
Operating Humidity10-90% non-condensing
Download product brochure

Included Accessories

MicroScribe Utility Software (MUS)

Limited manufacturer warranty

Certificate of Calibration

Metrology probe set: two 5mm ruby ball probe tips, one 3mm ruby ball tip, one point probe tip, M4 threads OR

Landmark probe set: two 60 degree point probe tips, one non-marring delrin probe, M4 threads

Tip calibration fixture

Hand switch

USB cable

Tip tool

Storage strap

Optional Accessories

Additional probe tips

Rugged carry case for safe transport

Small carry-on case for easy travel

Dual foot pedal for hands-free use

Mounting plate

Magnetic mounts

Tripod

Annual recertification

Alignment divots

MicroScribe Accessories

Enhance Your Workflow

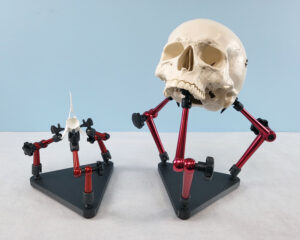

Laboratory Specimen Stand

View
Articulating arm laboratory specimen stand for holding bones, crania, and fragile artifacts while you collect data and perform analyses.
Three delrin probes in a small box with black foam

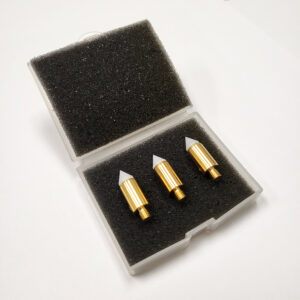

Disposable Non-Marring Probe Set (3)

View
Disposable M4 non-marring point probes, set of three (3) for forensics and anthropology.

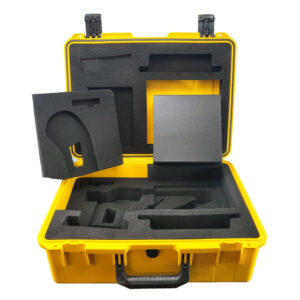

MicroScribe Carry-on Travel Case

View
Rugged carry-on travel case for MicroScribe 25" arms (3D, G2X, i+). Includes custom foam inserts and accessory box.

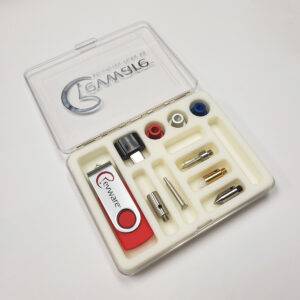

MicroScribe Landmark Probe Tip Workpak

View
M4 Probe tip workpak for M, i, and i+ series MicroScribe arms (mixed styli and extension). For custom or other tips not listed, Contact us.

MicroScribe Magnetic Mounting Plate

View
Aluminum mounting platform for i+ Series MicroScribe arms with magnetic lock switch system.

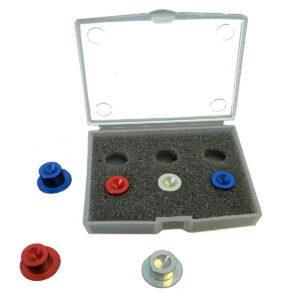

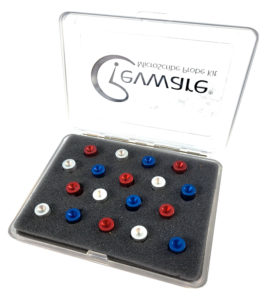

Aligment Divots set of 18

Alignment Divots Set of 18

View
Precision alignment divots, aluminum, set of 18 (adhesive not included).

Alignment Divots Set of 6

View
Precision alignment divots, aluminum, set of six (adhesive not included).

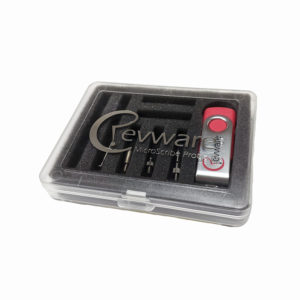

MicroScribe 4-48 Probe Tip Workpak

View
4-48 Probe tip workpak for G and 3D series MicroScribe arms (mixed styli and extension). For custom or other tips not listed, Contact us.

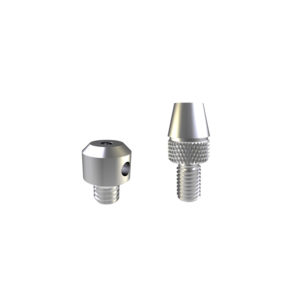

Probe Tip Adaptors for MicroScribe

View
Steel adaptors for MicroScribe probe tips.

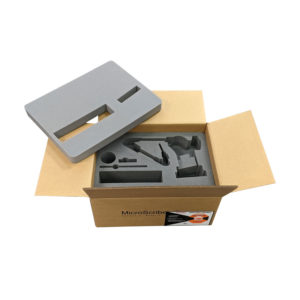

Store-and-Ship Box Set for MicroScribe

View
Replacement container for safe storage and shipping of MicroScribe systems.

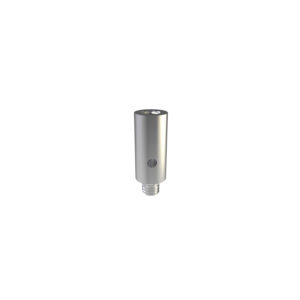

MicroScribe Probe Tip Extension

View
MicroScribe probe tip extension accessory, carbide steel, M4 X 15mm.

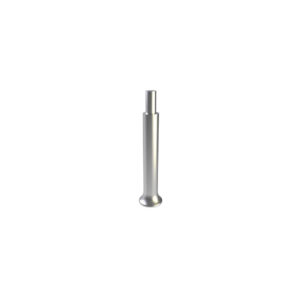

MicroScribe Probe Tip Tool

View
Probe Tip Tool for MicroScribe

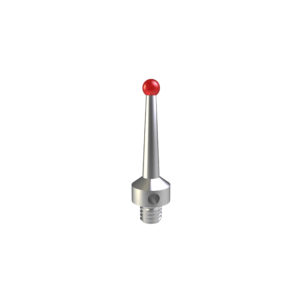

MicroScribe Replacement Tips

View
MicroScribe replacement probe tips. For custom or other tips not listed, Contact us.

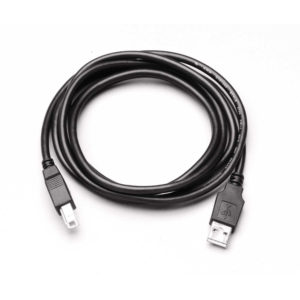

USB Cable for MicroScribe Arm

View
USB Cable for MicroScribe arm connection (all models).

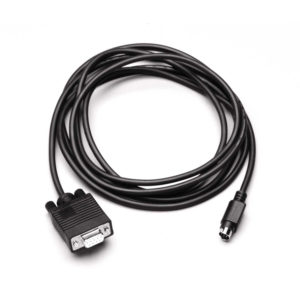

Serial Cable for MicroScribe Arm

View
Serial Cable for MicroScribe arm connection (3D, G and i series)

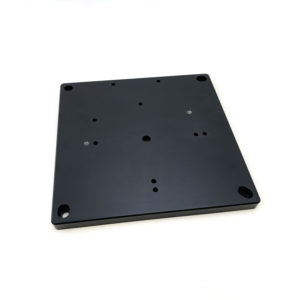

MicroScribe Mounting Plate

View
Aluminum mounting platform for M and i Series MicroScribe arms

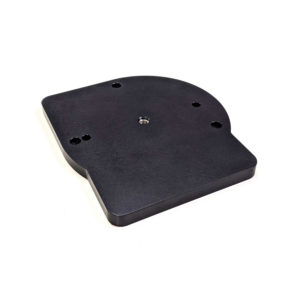

MicroScribe Tripod Mounting Plate

View
Aluminum mounting platform for tripod, M and i Series MicroScribe arms.

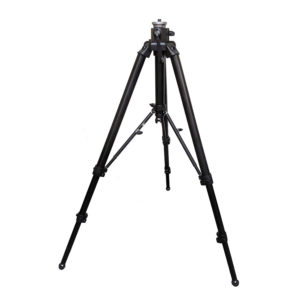

Tripod for MicroScribe Arm

View
Heavy duty tripod for mounting MicroScribe arm (All models). Center 3/8-16 standard video mount. Mounting platform sold separately.

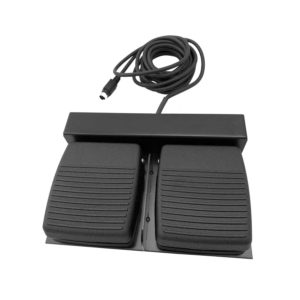

MicroScribe Dual Foot Pedal

View
Twin Standard Digitial Foot Pedal Accessory for MicroScribe arms (All Models). Comes with 90-day limited manufacturer's warranty.

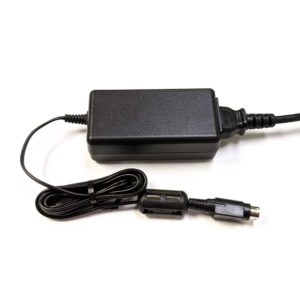

Power Supply for MicroScribe M Series

View
Power Supply for MicroScribe M series arms (All Models), 9V 2.5A output with IEC cable (please specify US, EU, UK, or AU).
